Marine gasketed plate heat exchangers
Alfa Laval has been developing heat transfer technology for more than 80 years and has been active in the marine industry for over a century. Based on that vast wealth of experience, our engineers have designed gasketed plate heat exchangers that set entirely new standards – not only for reliability, but also for thermal performance and ease of service.
The marine industry’s most modern line of plate heat exchangers
- Superior reliability and energy efficiency
- Small size and footprint (CompactFrame™ design)
- Minimal fouling (CurveFlow™ plate distribution area)
- Easy installation and service (five-point alignment system)
- Optimized global supply chain and production for smallest environmental footprint
Suitable for any vessel, Alfa Laval gasketed plate heat exchangers excel in applications from general heating and cooling to heat recovery, condensation and evaporation. With their innovative features, they take reliability to an all-new level and save crews time and effort during maintenance. Above all, their design minimizes fouling and maximizes heat transfer capabilities, which ensures the highest possible energy efficiency.
Produse

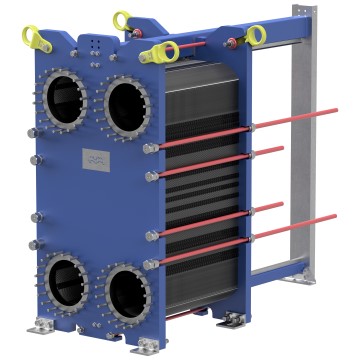

Gasketed plate heat exchangers for your vessel
Compact, reliable and energy-efficient, Alfa Laval gasketed plate heat exchangers are also safe and simple for crews to maintain. Our flexible marine line provides the right match for your needs today – with the possibility to adjust capacities later.

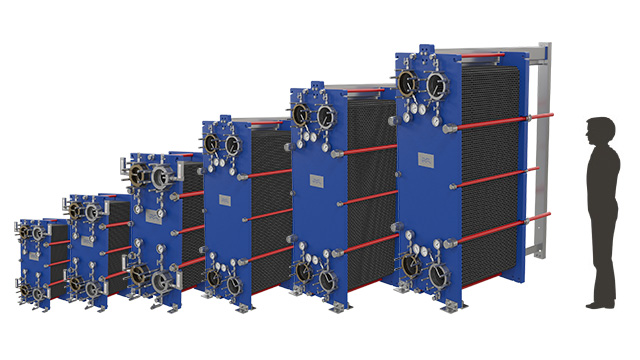

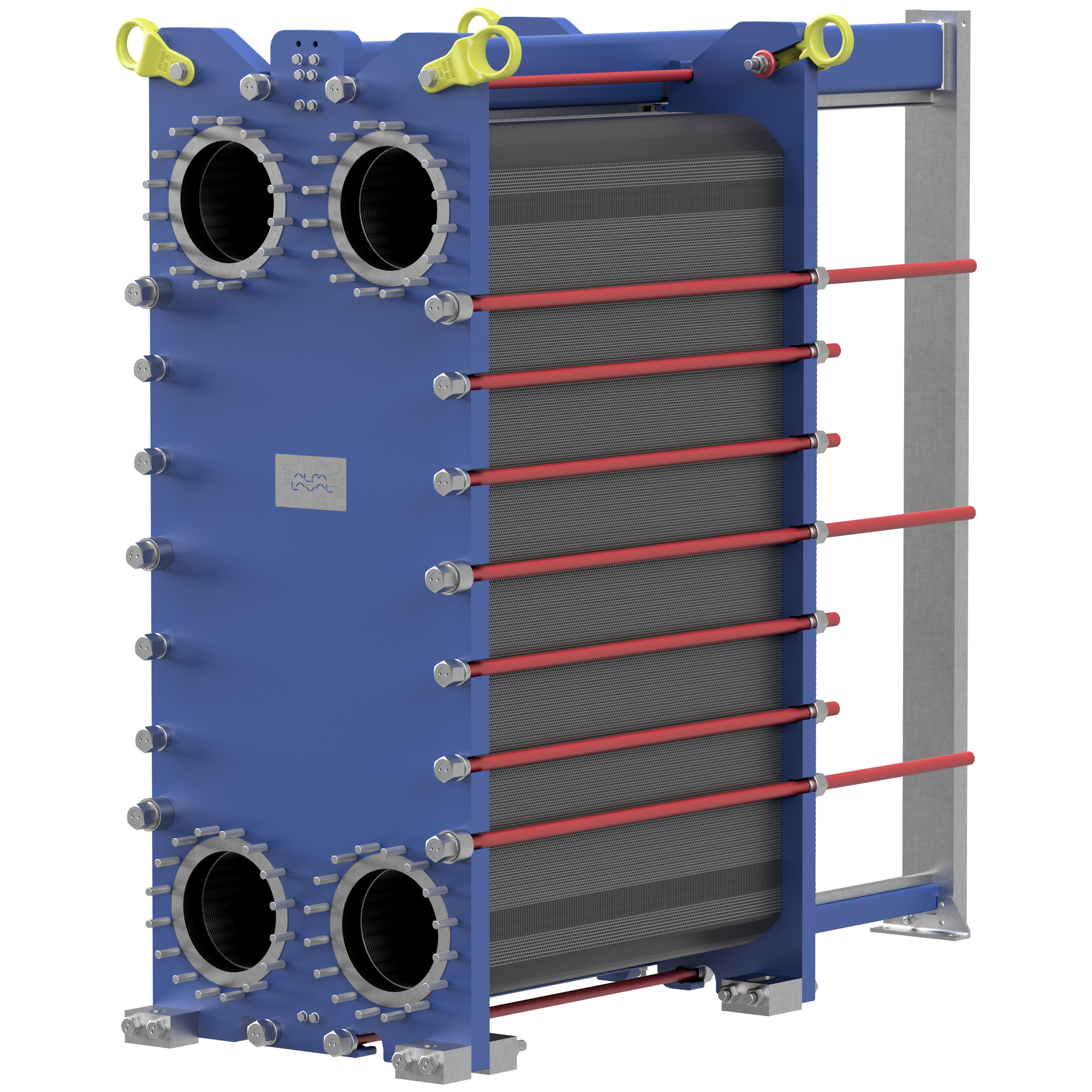

| T6 DN 60 |
T10 DN 100 |
T15 DN 150 |
T21 DN 200 |
T25 DN 250 |
T35 DN 350 |
|
|---|---|---|---|---|---|---|
| H (mm) | 890 | 1054 | 1833/1781 | 2082 | 2761 | 2875 |
| W (mm) | 320 | 470 | 610/650 | 755 | 913 | 1174 |
| Max flow rate (m3/h) | 60 | 160 | 370 | 650 | 1000 | 1970 |
| Capacity (kW) – water duty with LMTD 6 | 800 | 3 000 | 9 000 | 18 000 | 28 000 | 35 000 |
Cum funcționează
Zona de transfer de căldură a unui schimbător de căldură cu plăci și garnituri constă într-o serie de plăci ondulate, asamblate între batiu și placa de presiune, pentru a reține presiunea. Garniturile acționează ca etanșatoare între plăci. În mod normal, lichidele funcționează în contracurent prin schimbătorul de căldură. Aceasta oferă cea mai eficientă performanță termică și permite o abordare foarte precisă a temperaturii, adică diferența de temperatură între mediul de proces de ieșire și mediul de service de intrare.
Schimbător de căldură cu plăci și garnituri lichid/lichid
Features that make the difference
The Industrial line is equipped with features that turn this high-performance family into efficient and reliable workhorses that are easy to service and maintain over the whole product lifecycle.
For efficiency
By improving the efficiency of your heat exchanger, you can maximize production and minimize energy consumption to reduce your power bill and improve your environmental footprint.
See product animations below or get more information and listen to our technical experts.

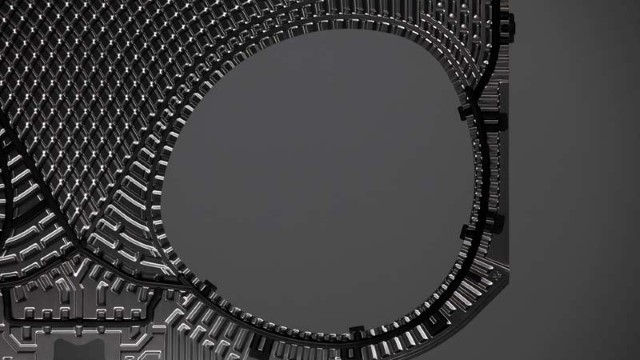

Zona de distribuție CurveFlow™
Îmbunătățește fluxul media și reduce la minim riscul de colmatare.
Orificii de port necirculare OmegaPort™
Îmbunătățește fluxul mediului și eficiența termică.
FlexFlow™
plate design
Improves thermal efficiency and optimizes pressure drop utilization.
For reliability
We are always looking to increase the reliability of every aspect of our gasketed plate heat exchangers.
We focus on durable designs based on robust materials and safe manufacturing processes.
See product animations below or get more information and listen to our technical experts.
Divizor placă model PowerArc™
Îmbunătățește rigiditatea plăcii pentru o durată mai lungă de funcționare.
Aliniere în cinci puncte
Asigură poziționarea fiabilă a plăcii și un service mai facil pentru unitățile mari.
Alinierea plăcilor SteerLock™
Asigură o poziționare fiabilă a plăcii și un service facil.
For serviceability
The simple opening and closing of the plate-and-frame design with gaskets enables hassle-free inspection and service. It also enables you to easily adapt the unit to new process conditions.
See product animations below or get more information and listen to our technical experts.
Accesoriu garnitură ClipGrip™
Asigură etanșarea perfectă și întreținerea fără probleme.
Rolă T-bar
Oferă o unitate inferioară ușor de servisat.
Cutii de rulment
Garantează o unitate ușor de deschis pentru o întreținere mai lină și mai eficientă.
Batiu compact
Facilitează întreținerea și minimizează cerințele zonei de service.
