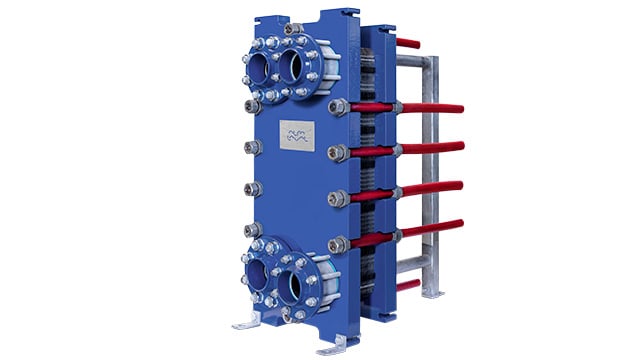

Marine semi-welded plate heat exchangers

Semi-welded plate heat exchangers are suitable for fuel conditioning duties involving alternative fuels, LPG cargo handling duties, refrigeration duties and Organic Rankine Cycle (ORC) duties. Our marine line features the unique Alfa Laval RefTight™ sealing system, which guarantees a long lifetime sealing between the welded channels because the laser weld is on the outside of the ring gasket groove. The smooth surface ensures a tight uniform seal over the entire gasket ring.

marine semi welded

Highly efficient and flexible marine heat exchangers

  • High efficiency that reduces energy consumption and OPEX
  • Long service life, comparable to the vessel lifetime
  • Serviceable without hot work, protecting uptime
  • Easy maintenance on board through CIP or mechanical cleaning
  • Extendable capacity through the addition of plates

Alfa Laval’s marine semi-welded plate heat exchangers are available for a broad range of temperatures and media, with operating pressures up to 65 bar. Robustly constructed, they provide exceptional longevity with their resistance to vibrations and pressure cycles. The various sizes, which cover a wide spectrum of heat transfer capacities and flows, are carefully designed and selected to achieve optimal performance. The cooling media/seawater side is fully accessible without disconnecting the semi-welded plate heat exchanger from the pipework.

Documente

Applications


Heating and cooling in the engine room

On a ship, there are many types of machinery with a cooling demand. When the heat energy cannot be recovered or utilized, the total costs of transferring it away from the machinery should be kept to a minimum. Alfa Laval can ensure a cost-effective central cooling system through our portfolio of innovative plate heat exchangers. Our gasketed plate heat exchangers have unique features that reduce the running costs for engine room cooling – and contribute to sustainability.


Learn more


Heating and cooling for LPG cargo handling

The transport of LPG requires tailored cargo handling systems. Alfa Laval marine semi-welded plate heat exchangers are the ideal choice for the cargo condenser, thanks to their very high efficiency, their small footprint and the ease of performing service on board. The robust units resist vibrations and pressure fatigue, and more plates can be added if faster loading rates are desired.


Learn more


Heating and cooling for methanol

As the marine industry decarbonizes, interest in methanol is growing and the first methanol-fuelled vessels are beginning to appear. Methanol is a clean-burning liquid fuel that enables carbon-neutral operations if produced from green sources. Yet it poses heating and cooling challenges compared to conventional fuels. Alfa Laval has the heat exchanger solutions to ensure safe and efficient work with methanol on board.


Learn more


Marine refrigeration

Refrigerants are common in the marine industry, from chilling and freezing the catch on fishing vessels to air conditioning on cruise ships. Yet the refrigerant types are changing rapidly. Chlorofluorocarbon (CFC) and hydrochlorofluorocarbon(HCFC) refrigerants have given way to hydrofluorocarbon (HFC) refrigerants, and now many shipowners are exploring natural refrigerants like CO2. Alfa Laval has the heat exchanger solutions and expertise to support natural refrigerant choices.


Learn more

Services

Alfa Laval Marine Service


Worldwide and 24/7, Alfa Laval Marine Service is your path to greater uptime, optimized performance and true peace of mind. Our network is always on call, and our service offering brings reliability, efficiency and compliance throughout your equipment's lifetime.


Discover our service capabilities

24/7 Service & Support

Service woman 7.jpg

Contact us anywhere, anytime:

+46 4636 7700
marine.service@alfalaval.com



Our global network of service centres, distribution centres and field service engineers is always ready at assist you.

Higher pressures demand a higher standard

If your heating and cooling duties demand higher pressures, it’s time to demand a higher standard of technology. Discover total reliability and efficient thermal performance with the Alfa Laval marine line of semi-welded plate heat exchangers.

DNS highpressure 640x360

Highly efficient with unique sealing system

Alfa Laval marine semi-welded gasketed plate heat exchangers are suitable for liquids and gases incompatible with normal gaskets or at higher pressures. They are commonly used in refrigeration applications for evaporation and condensation.

The unique Alfa Laval RefTight™ sealing system guarantees a long life-time sealing between the welded channels because the laser weld is on the outside of the ring gasket groove. The smooth surface ensures a tight uniform seal over the entire gasket ring.

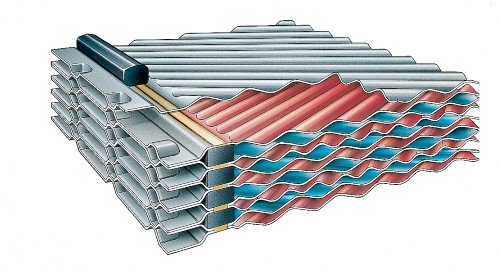

semi welded plates 500px

What make our plate heat exchangers so reliable, efficient and serviceable?

Equipped with well-designed features that make a difference, Alfa Laval marine semi-welded plate line of heat exchangers are easy to maintain and have a long service life.

Sistem de etanșare RefTightTM

Etanșeitate de înaltă performanță pentru sarcini de înaltă presiune

Zona de distribuție CurveFlow™

Îmbunătățește fluxul de mediu și minimizează riscul de colmatare.



Orificii de port necirculare
OmegaPort™

Îmbunătățește fluxul de mediu și reduce la minimum riscul de colmatare.

Accesoriu garnitură ClipGrip™

Asigură etanșarea perfectă și întreținerea fără probleme.

Aliniere în cinci puncte

Asigură poziționarea sigură a plăcii și service-ul ușor al unităților mari.

Rolă T-bar

Oferă o unitate inferioară ușor de utilizat.

How it works

The heat transfer area of a gasketed plate-and-frame heat exchanger consists of a series of corrugated plates, assembled between the frame and pressure plates, which retain the design pressure. For the highest thermal performance and to enable a very close temperature approach, fluids normally run counter-currently through the heat exchanger.

The sealing between the plates on the marine semi-welded line alternates between laser welds and gaskets. The laser welded channel allows use of fluids that are not compatible with normal gaskets and also allows for higher design pressure than fully gasketed plate-and-frame heat exchangers. Additionally, the Alfa Laval RefTight™ sealing system guarantees equal sealing force over the entire porthole gasket.

The marine semi-welded line is available with various pressing depths and angles of the chevron pattern and various shapes of the corrugation which are carefully designed and selected to achieve optimal performance. The CurveFlow™ and the chocolate pattern distribution area are two design features available that ensure fluids are evenly distributed across the entire plate. The result is that the entire heat transfer surface is fully utilized and stagnant zones that can result in fouling are avoided.

High flow turbulence between plates results in higher heat transfer; however, the consequence is pressure drop. Our thermal design engineers will help you design and select the model and configuration that is suitable for your application needs while delivering maximum thermal performance and minimizing pressure drop.

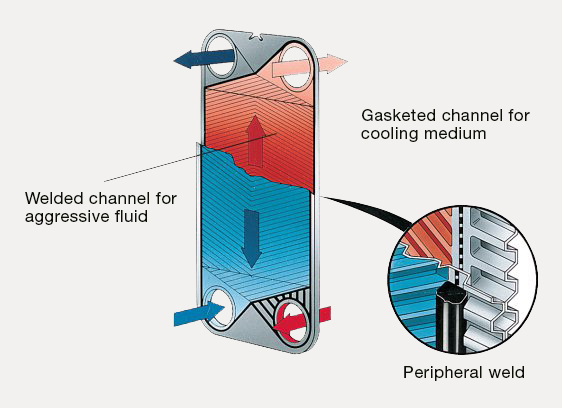

DNS semiwelded illustration

Schimbătoare de căldură cu plăci și garnituri pentru aplicații lichid/lichid

Schimbător de căldură cu plăci și garnituri pentru abur

Schimbător de căldură cu plăci și garnituri cu 2 treceri

Design cu rolă T-bar

Cameră de scurgere

Profil garnitură Alfa Laval

Deschidere tirant

Rolă placă presiune

Piulițe alungite

Adeziv garnitură
