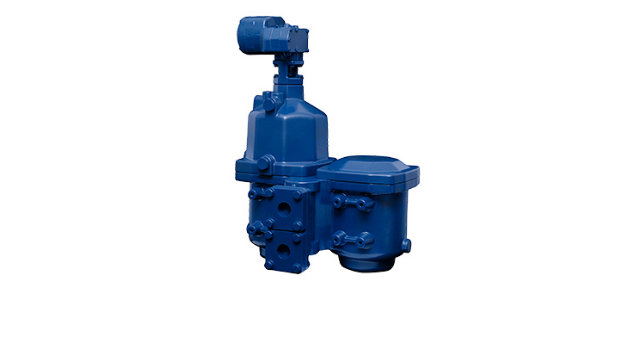

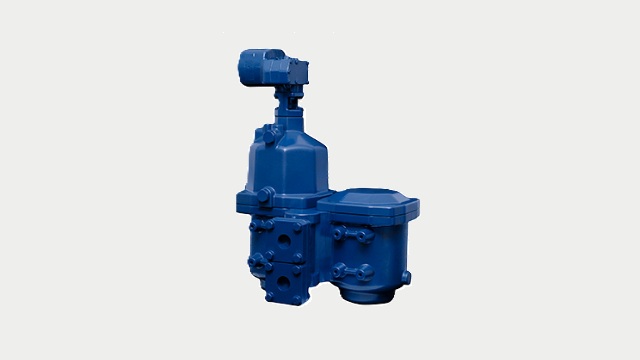

Moatti 152 filters
Alfa Laval Moatti 152 self-cleaning filters provide high efficiency fine, 10 µm fuel oil filtration, ideal for four stroke or small two stroke engines. No matter your fuel – marine diesel oil, heavy fuel oil, or very low sulphur fuel oil – the 152 filter is a proven and reliable fuel filtering solution, protecting your engine from catalytic fines and fuel instability.
Automatic full-flow fine filtration of marine fuels (HFO, VLSFO, MDO, Biofuels)
- Robust disc-type filter elements
- Filtered oil drives the continuous backflushing process
- Constant pressure-drop across the filter
- Compact and lightweight
- Complete reuse of the backflushed oil in integrated diversion chamber
Biofuel-ready
Moatti 152 fuel oil filters are suitable for use with biofuels of the following type:
- Fatty Acid Methyl Esters (FAME), compliant with EN 14214
- Hydrotreated Vegetable Oils (HVO)
- Blends of the above with ISO 8217–compliant hydrocarbon fuels
Application examples
The Alfa Laval Moatti 152 self-cleaning filter range covers rigorous fuel oil filtration needs in several industries and applications.
Power industry
- Engine power
- Nuclear power
- Combined heat and power
Marine industry
- Fuel conditioning
- Fuel oil treatment
Transport industry
- Fuel cleaning
Cum funcţionează:
Extensive filter area is critical for fine filtration, for example at the very fine grade of 10 μm required for fuel oil filtration for four-stroke or small two-stroke engines. Whether on MDO, HFO or VLSFO, the Alfa Laval Moatti 152 filters are the tried and tested workhorse you can trust to protect your engines from catalytic fines and fuel instability.
